🖥️ Backend Overview

Fastify monolith with 18 modules under src/modules/, each self-contained. Most follow Routes / Repository / Service. Two use DDD (device-core/, automations/), one bridges to Python (device-bootstrap/).

Tech Stack

• Runtime: Node.js (ESM)
• Framework: Fastify + Zod + @fastify/swagger + Scalar UI
• DB: PostgreSQL 16 via pg (no ORM, raw SQL with query<T>())
• MQTT: mqtt library, broker is Mosquitto in same Docker stack
• WebSocket: @fastify/websocket for local frontend, separate WSS client to Cloud
• BLE: Python bleak via subprocess (scripts/ble_bridge.py)

Module Map

Module	Layout	DB Tables	Endpoints
auth	Standard	users, refresh_tokens	/api/auth/*
users	Standard	users (cloud-synced read)	/api/users/*
user-management	Standard	users, station_members	/api/user-management/*
devices	Standard	devices	/api/devices/*
device-types	Standard	device_types (registry sync)	/api/device-types
device-events	Standard	device_events, event_settings, device_type_event_presets	/api/device-events/*
device-bootstrap	Service + Python bridge	— (provisioning candidates in memory)	/api/device/*
device-core	DDD	devices, device_types	— (event-driven, no REST)
zones	Standard	zones	/api/zones/*
automations	DDD	automations, automation_runs	/api/automations/*
kits	Standard	device_kits, kit_presets	/api/kits/*
firmware	Standard	firmwares	/api/firmware/*
ota	Standard	ota_logs	/api/ota/*
wifi	Standard	— (system calls)	/api/wifi/*
settings	Standard	station_settings	/api/settings/*
backup	Service-only	(reads/writes all)	/api/backup/*
cloud	Config + WS client	cloud_config	/api/cloud/status
cloud-sync	Sync service	users (write)	— (WSS-driven)
station	Repository-only	station, station_members	—

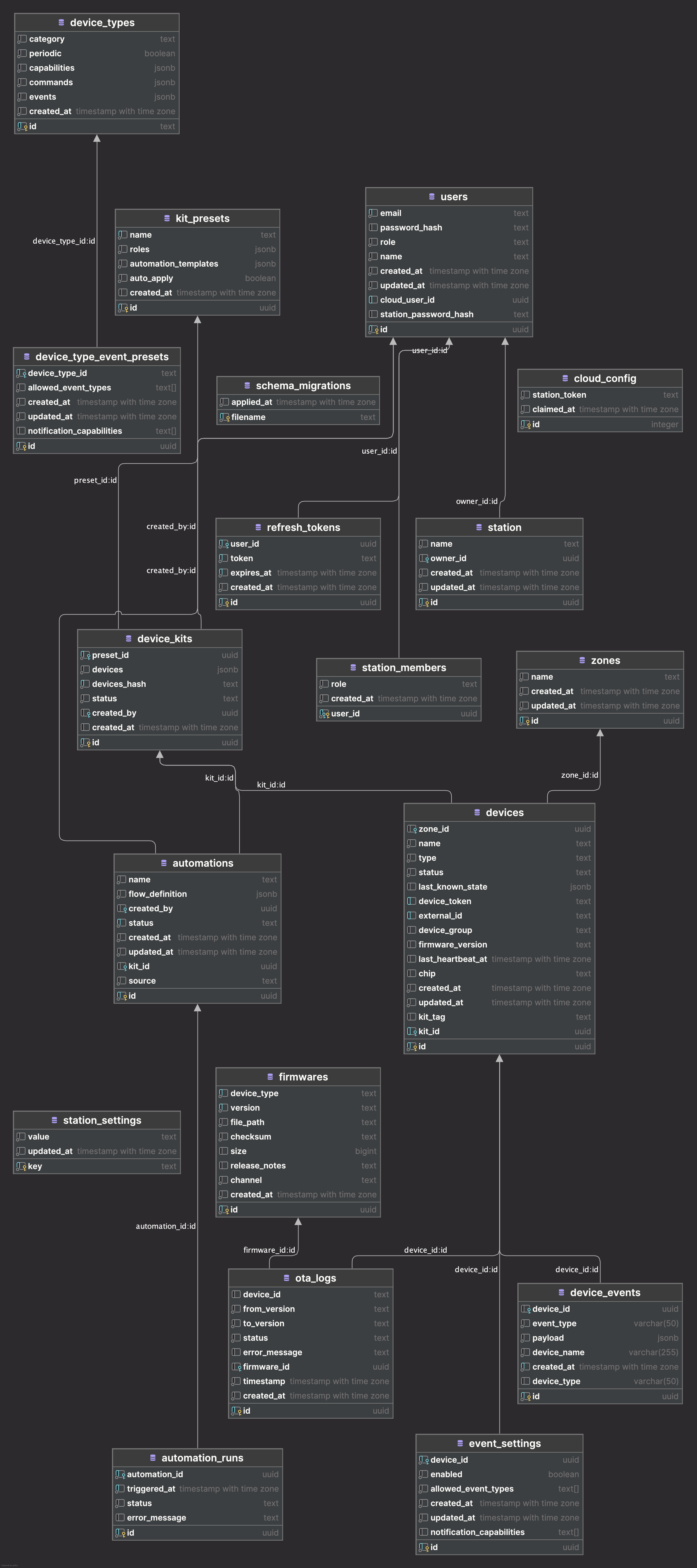

DB Schema

Migrations in src/db/migrations/ ↗ — sequential 001_, 002_, ... applied on boot via runMigrations().

Conventions

Routes

export const myRoutes = (fastify: FastifyInstance) => {
  fastify.addHook('preHandler', verifyToken);

  fastify.post(
    '/',
    { preHandler: authorize(['owner', 'admin']) },
    async (request, reply) => {
      const body = CreateSchema.parse(request.body);
      const result = await myService.create(body);
      return reply.status(201).send(result);
    },
  );
};

• Routes registered in app.ts with prefix: app.register(myRoutes, { prefix: '/api/my' })
• All Zod schemas use camelCase keys
• Errors via reply.status(code).send({ message }) — global setErrorHandler shapes the response

Repositories

import { query } from '../../db/db.js';
import type { Device } from '@smart-home/shared';

export const findById = async (id: string): Promise<Device | null> => {
  const result = await query<Device>('SELECT * FROM devices WHERE id = $1', [id]);
  return result.rows[0] ?? null;
};

• query<T>() auto-converts snake_case → camelCase in result rows
• Parameterized SQL only ($1, $2, ...)
• Returns null for not found, no exceptions for normal absence

Services

• Import repository as import * as myRepo from './myRepository.js'
• No direct query() — all SQL through the repository
• Use logger (never console, never fastify.log)

Auth Hooks

Hook	Verifies	Source
verifyToken	JWT Bearer (user session)	hooks/authHooks.ts
authorize(roles)	Global role: owner/admin/member	hooks/authHooks.ts
requireStationRole(...)	Station-membership-scoped role	hooks/authHooks.ts
verifyDeviceToken	Device-to-backend auth (per-device token)	hooks/deviceAuthHooks.ts
verifyAgentToken	station-agent talking to backend	hooks/deviceAuthHooks.ts

Boot Sequence

Source: src/server.ts ↗

Periodic Maintenance

Job	Interval	Purpose
Heartbeat timeout	every minute	Mark device offline if no heartbeat for 3 min
Refresh token cleanup	24h	Delete expired refresh_tokens rows
Automation runs cleanup	24h	Delete automation_runs older than 30 days
Device events cleanup	24h	Delete device_events older than 30 days

Reference

• Fastify backend conventions ↗
• Backend-specific rules ↗
• TypeScript conventions ↗
