🗄️ Cloud Data Model

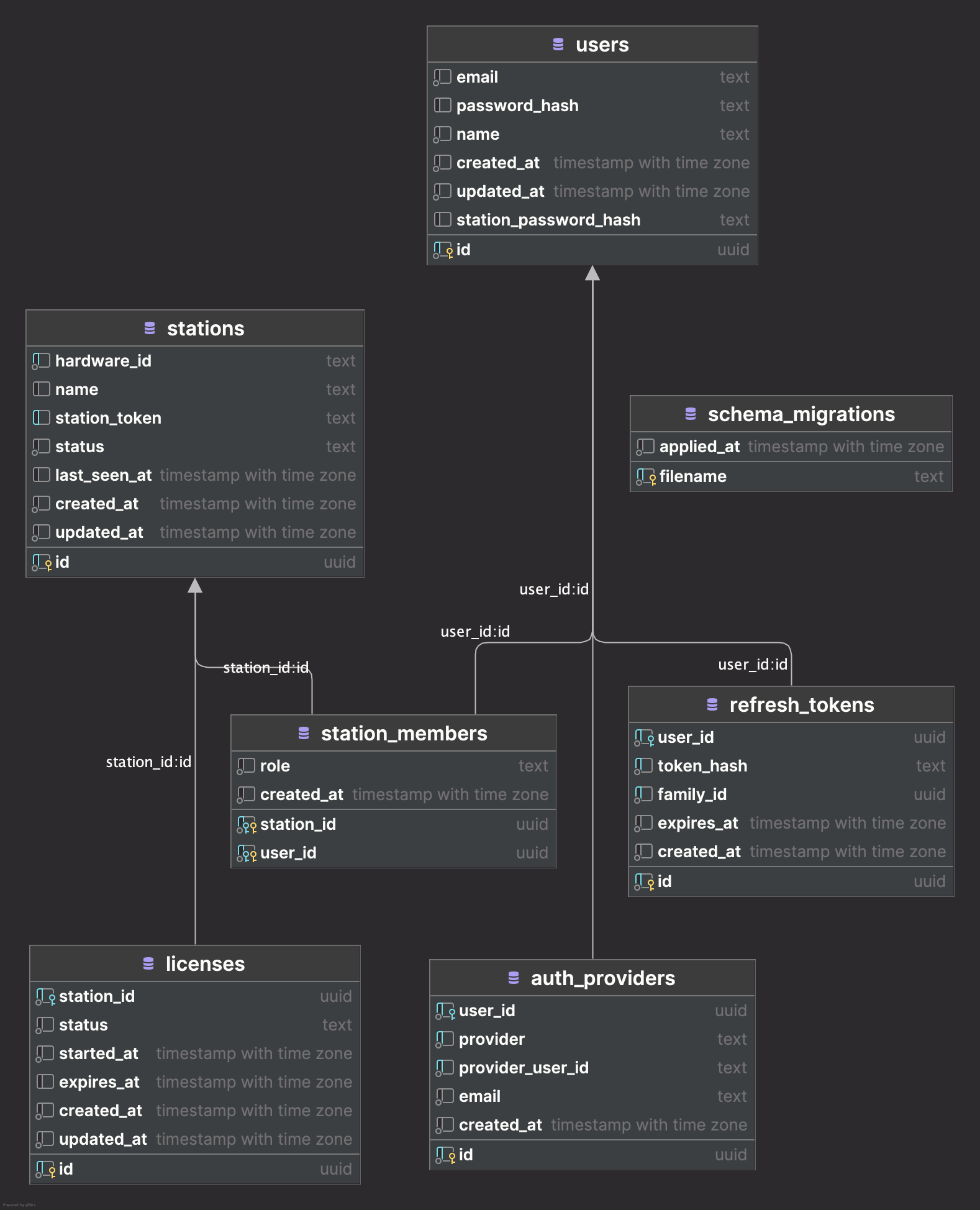

Cloud DB Schema

Entities

TableDescription
usersCloud account. One person = one account. Auth via OAuth (Google, Apple) or email/password. password_hash is set for both methods — OAuth users still need a password for Station LAN access offline. station_password_hash is a separate hash synced to stations for local LAN auth.
auth_providersOAuth links. Stores provider (google/apple), provider_user_id, and the email returned by the provider. Auto-linked by email when a password user later signs in via OAuth.
stationsOne Raspberry Pi. Identified by hardware_id generated on first boot, plus station_token issued on claim. last_seen_at updated on every WSS heartbeat.
station_membersUser-station link. Roles: owner (full), admin (devices), member (view). PK = (station_id, user_id).
licensesSubscription tied to a station. States: trial → active → cancelled. Without active license, cloud features stop; local features keep working.
refresh_tokensJWT refresh tokens. family_id groups tokens from a single login session for rotation tracking — reuse of a stale token invalidates the whole family.
schema_migrationsMigration tracking — filename + applied_at.

Relationships

  • users 1—N auth_providers — one user, many OAuth links
  • users 1—N station_members — user can be in many stations
  • stations 1—N station_members — station has many members
  • stations 1—1 licenses — license per station
  • users 1—N refresh_tokens — multiple device sessions
